300 Series Drawer System (Touring Package)

SKU AM-RD-300 (Touring Package)
AU$11,249.00
Price incl. GST (10%) AU$1,022.64
INCLUDES FITTING OF DRAWER AND ELECTRICAL SYSTEM
Seat Option
Single Arb Air Compressor Upgrade
EvaKool Drawer Fridge 40l
FITTING
In stock: 1 available
1
Maximum purchase quantity: 1 items
Save this product for later
300 Series Drawer System (Touring Package)
Product Details

**PRICE INCLUDES FITTING OF DRAWER AND ELECTRICAL SYSTEM**

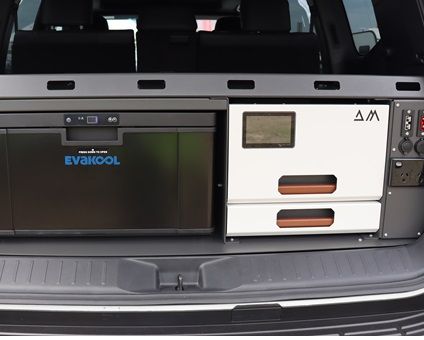

300 Series wagon drawer system is designed to maximise storage and organisation in the rear boot area of the Toyota Land Cruiser 300 Series.

A well-designed drawer system can greatly enhance the functionality and utility of a Toyota Land Cruiser 300 Series, making it an ideal choice for serious adventurers and off-road enthusiasts.


Weight

  • 65kg (not including Fridge / Electrical System / Extras)
  • Approx 140kg total with Drawers / Fridge / Full Electrical System (once rear seats are removed approx 100kg in total).


Features:

    • Designed specifically for the Toyota Land Cruiser 300 Series, both 5 and 7 seats
    • Contoured to fit the vehicle’s cargo area precisely using 3D Scanning / CAD technologies
    • Rear Seats must be removed for installation
    • Australian Made
    • Designed & Fabricated in-house
    • Made from Aluminium and Stainless Steel
    • False floor included in design
    • Storage Drawers:
      • Top Drawer 800L x 355W x 237H
      • Under Drawer 800L x 314W x 75H
    • 2 X Internal adjustable drawer Dividers
    • Lift-up stainless Lid on bottom slide out drawer, doubling up as a table/bench space
    • 227kg / 125kg Locking Drawer Slides
    • Designed to suit the Evakool 40LT Drawer Fridge / Freezer
    • 200ah CustomLITHIUM Battery tray & strap included
    • Powder-coated


Touring Electrical System

  • 200ah Lithium Battery (CustomLITHIUM)
  • Victron Orion XS 12/12-50A (700w) Non-isolated DC-DC Charger
  • Victron Phoenix Inverter 12/2000 230V Smart
  • Victron SmartSolar MPPT 100/30
  • Victron Cerbo GX
  • Victron GX Touch 50 Monitoring
  • Victron SmartShunt 500A/50mV
  • 2 x Shervey USB Quick Charge 3.0 and USB-C
  • Shervey Multi-Current Fuse Block
  • Double Pole Black PowerPoint + RCD Breaker
  • Flush Grey 50amp Anderson Plug
  • Flush Red 50amp Anderson Plug (Solar input)


ARB Single Air Compressor Upgrade

  • Compressor Kit 12V
  • Pump Up Kit US STD High Temp
  • ARB Digital Tyre Inflator Braided Hose


PLEASE NOTE:

  • Check Regulations: Ensure you understand the local regulations and requirements for vehicle modifications in your area. Each state and territory may have different rules regarding seat removal and modification plates (Mod plates).
  • Modification Approval: You may need to get the modification approved by a certified engineer or vehicle inspection station if you would like to permanently removing the rear seats and seat belts.
  • AM Off Road to sort: We can have this sorted if we are installing in house only if the car is registered only in QLD. Fee charged $880 inc GST.


    • Please get in touch with us at sales@amoffroad.com.au for any questions regarding the drawer system or power system.

    Please note, we can also custom make this product to suit different designs or power system

    Show More
